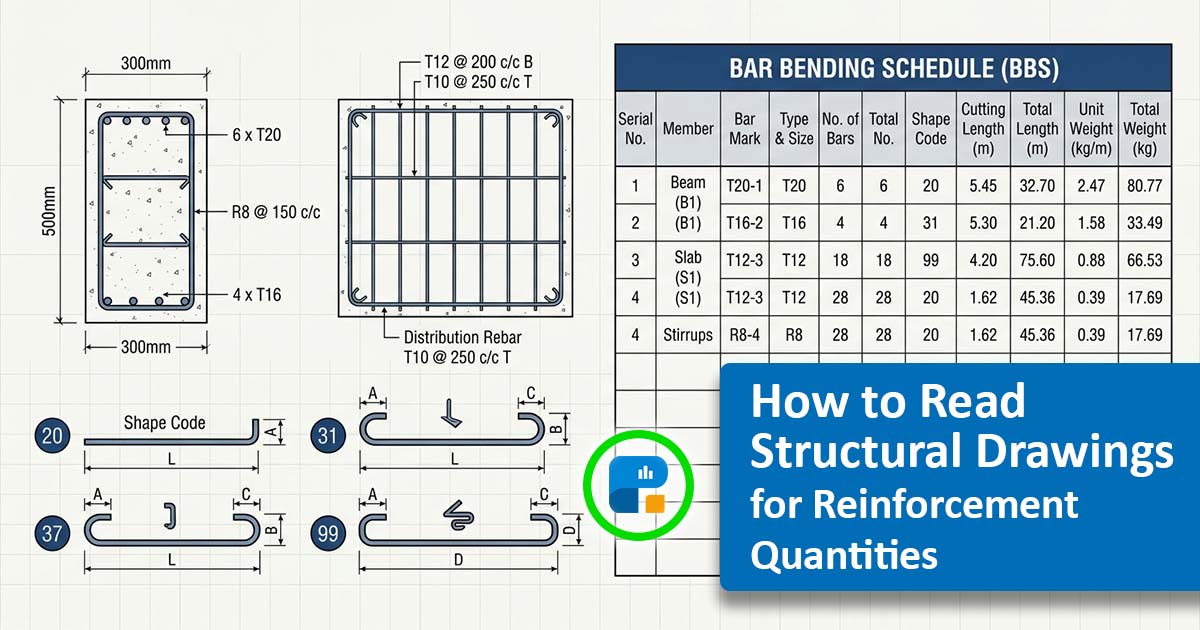

How to Read Structural Drawings for Reinforcement Quantities: A QS Practical Guide

A junior QS joined a project halfway through the reinforcement takeoff for a residential block. The senior QS had completed the foundations and columns and had started on the ground floor slab before leaving for another project. The junior picked up the slab drawing and began working from where the notes left off.

Three weeks later, during a procurement review, the structural engineer queried the reinforcement tonnage. The total weight the QS had calculated was 14 percent below the engineer's own estimate. The discrepancy was traced back to the slab drawing — specifically to a section of additional top reinforcement over the slab's intermediate supports that appeared only in the section view, not in the plan. The plan showed the main bars and distribution bars clearly. The additional support reinforcement was annotated in a section detail that the QS had not connected to the plan area it covered.

The bars were there on the drawing. The information needed to include them in the BBS was complete. What was missing was the knowledge of where to look for it and how the plan and section views worked together to describe the complete reinforcement arrangement. That is the gap this guide addresses.

Reading a reinforcement drawing for quantity purposes is a specific skill. It is not the same as reading it to understand the structural design, and it is not the same as reading a general arrangement drawing to understand the building layout. The QS needs to extract specific information — bar marks, diameters, spacings, extents, cover, lap lengths — and connect that information to the correct element dimensions to produce a complete and accurate bar bending schedule. This guide explains exactly how to do that, drawing type by drawing type, notation by notation.

How a Structural Drawing Set Is Organised — and Why It Matters

Before opening a single reinforcement drawing, the QS needs to understand how the structural drawing set is structured. A reinforcement drawing set for a concrete building is not one document — it is a collection of drawing types, each providing a different layer of information that must be read in combination to produce a complete picture of the reinforcement requirements.

The most important thing to understand about this structure is that no single drawing type is self-contained. A slab plan will show you where bars are, but not always how far they extend. A section view will show you the arrangement of bars through a cross-section, but not their plan distribution. A detail sheet will show you a specific junction condition, but you need to trace it back to the plan to understand where that junction occurs and how many times. Missing any one of these layers means missing quantities.

The drawing types in a typical reinforced concrete set and what each one provides:

The general notes sheet deserves particular attention because it contains information that applies to every calculation in the BBS — the cover to reinforcement for different exposure conditions, the minimum lap lengths, and the standard hook dimensions. These values are not repeated on every drawing sheet. They are stated once on the notes sheet and assumed to be applied throughout. A QS who does not read the notes sheet before starting the takeoff is working without the parameters that govern the cutting length calculations.

Understanding Bar Mark Notation — What the Numbers and Letters Mean

Every reinforcement bar in a structural drawing set is identified by a bar mark — a unique reference that connects the drawing to the bar bending schedule. Once you understand what a bar mark notation is telling you, reading a reinforcement drawing becomes considerably more straightforward.

A typical bar mark notation on a UK structural drawing follows the format: number of bars or spacing — steel grade and diameter — bar mark reference. So T16-150 B1 means high-yield bars of 16mm diameter at 150mm centres with the bar mark reference B1. The bar mark B1 is the reference that appears in the BBS — every row in the schedule relating to this bar type will carry the mark B1, linking the schedule back to the drawing.

The steel grade letter is important because it determines the material standard being specified. H or T indicates high-yield deformed bar to BS 4449 — the standard bar used in most structural concrete in the UK and Middle East. The diameter follows immediately and determines the unit weight used in the weight calculation. Getting the diameter wrong by one row in the BBS produces an incorrect unit weight that cascades through the entire weight calculation for that bar mark.

Common Notation Reference

The EW notation — each way — appears frequently on slab drawings and is one of the most common sources of missed quantities. When a slab is reinforced with T12-200 EW, it means T12 bars at 200mm centres running in both the longitudinal and transverse directions. That is two separate layers of reinforcement at the same spacing. Both need to be measured and included in the BBS as separate bar marks. A QS who reads EW and measures only one direction has missed half the reinforcement in that slab zone.

Reading a Slab Drawing — Plan and Section Together

The ground floor slab drawing from the residential project at the opening of this article illustrates the most common misreading pattern in reinforcement quantity work. The plan view shows the primary reinforcement clearly — main bars running in one direction, distribution bars running perpendicular. The spacing is annotated against each bar set, the bar marks are labelled, and the extent of each bar zone is indicated by dimension lines.

What the plan view does not show clearly is the additional top reinforcement that the structural engineer has added over the intermediate slab supports — the beams and walls that the slab spans between. This reinforcement is required to resist the hogging moment at supports, and it projects a defined distance either side of the support centreline. The extent of that projection is shown in the section view, referenced from the plan by a section mark — a line with arrows indicating the direction of view and a reference letter that matches a section drawing elsewhere in the set.

The connection that many QS professionals miss early in their careers is that the section mark on the plan is not just a structural notation — it is a direction to look somewhere else for additional quantity information. Every section mark on a reinforcement plan is potentially pointing to reinforcement that is not visible in the plan view and that must be included in the BBS. Following all section marks is not optional. It is the primary method by which the structural engineer communicates reinforcement that cannot be shown clearly in plan.

What to Check on Every Slab Drawing

Working through a slab drawing systematically reduces the risk of missed quantities and ensures that the BBS captures every bar mark the engineer has specified:

•       Read the notes sheet first: Confirm the cover to soffit, cover to top, and any zone-specific cover that differs from the standard — cover affects every cutting length in the slab schedule

•       Identify every bar mark on the plan: List all bar marks visible in the plan, with their diameter, spacing, and direction — this becomes the starting framework for the slab section of the BBS

•       Follow every section mark: Locate and read every section drawing referenced from the slab plan — identify any additional reinforcement shown in section that is not visible in plan, including top bars over supports and edge reinforcement

•       Check for EW notation: Any bar annotated EW represents two layers — both must be scheduled as separate bar marks with the same spacing but running perpendicular to each other

•       Identify slab edges and openings: Edge U-bars, trimmer bars around openings, and additional reinforcement at slab perimeters are typically shown in details — check that all edge conditions have been covered

•       Confirm the extent of every bar zone: Top bars over supports extend a defined distance from the support — that extent is shown in the section, not always clearly in plan. Confirm the dimension before calculating bar lengths

Reading Column and Wall Reinforcement

Column and wall reinforcement drawings work differently from slab drawings because the primary information is typically presented in a schedule format rather than in a plan view. A column schedule lists every column reference on the project — C1, C2, C3 and so on — with the number of vertical bars, their diameter, and the link spacing in the column body and at the beam-column junction above and below.

The quantity information the QS needs from a column schedule is: the number of vertical bars per column, the diameter of those bars, the column height from which the bar length will be calculated, and the link diameter and spacing throughout the column height. Column heights come from the structural grid — the distance from the top of the foundation or slab below to the soffit of the beam or slab above, plus the development length required at each end.

Link spacing in columns is not uniform. Most structural engineers specify closer link spacing in the zones immediately above and below the beam-column junction — typically within one column dimension either side — to provide additional confinement at the high-stress zones. The column schedule will show different link spacings for these zones. Both need to be measured separately in the BBS — the number of links at close spacing and the number at standard spacing are different calculations, and combining them into a single average produces an inaccurate total.

Starter Bars — The Most Commonly Missed Column Quantity

Starter bars are the reinforcement that projects from one structural element into the one above it — from the foundation into the column, from the column into the column above at each floor level, and from the column into the beam at the junction. They are specified on the detail sheet or on the general notes sheet rather than on the column schedule, and they are measured differently from the column vertical bars.

A starter bar has two components: the development length embedded in the lower element and the projection into the upper element. Both lengths come from the drawing, and both must be included in the cutting length calculation. A QS who measures only the projection without including the development length below is understating the cutting length — and therefore the weight — of every starter bar on the project.

Reading Beam Reinforcement — Elevation and Section Together

Beam reinforcement is shown in two complementary views: an elevation showing the beam span with the top and bottom reinforcement along its length, and a cross-section showing the arrangement of bars through the beam depth at a specific location. Both are needed to produce a complete BBS for the beam.

The elevation shows the bar marks for the main bottom reinforcement — the tension steel that carries the sagging moment in the span — and the main top reinforcement at the beam ends, where the moment reverses over the supporting columns. It also shows the extent of each bar along the beam length, which is essential for calculating cutting lengths. Some bottom bars run the full beam span. Others are curtailed at a specified distance from the support when the bending moment reduces sufficiently. Both the full-length bars and the curtailed bars are separate bar marks with different lengths.

The cross-section shows the total number of bars at that section — both the bars that run the full span and any additional bars that exist only at that location. It also shows the link arrangement: the link diameter, the internal dimensions of the link, and the spacing. Link spacing in beams varies along the span — closer at the ends where shear forces are highest, and wider in the middle of the span. The beam elevation will show where the spacing changes, and both zones need to be measured separately.

The Detail Sheet — Where the Unusual Conditions Live

The detail sheet is the most easily overlooked part of a reinforcement drawing set, and it is where some of the most commercially significant reinforcement quantities are described. Structural engineers use the detail sheet to show conditions that cannot be adequately described in the plan and section drawings — junction details at beam-column connections, slab edge and opening details, foundation-to-column base details, staircase reinforcement, and any condition where the standard arrangement does not apply.

From a quantity perspective, the detail sheet matters because it often shows additional reinforcement at high-stress locations — extra bars at re-entrant corners, trimmer bars around large slab openings, U-bars at free edges, additional links at column-beam junctions. These bars are not distributed uniformly across the structure — they occur only at specific locations — but those locations need to be counted from the plan and the bar lengths calculated from the detail.

The method for extracting quantities from detail sheets is to first understand what the detail is showing — what structural condition it applies to — and then to go back to the plan and identify every location where that condition occurs. A junction detail that applies to every beam-column connection on the floor needs to be counted once per connection and multiplied by the number of connections. A slab edge detail that applies only to the free edges of the building perimeter needs to be measured against the perimeter length on the plan.

Once all the information has been extracted from the structural drawings and the BBS is ready to be prepared, every calculation — cutting lengths, bar counts, weight totals — follows a structured process. For the complete step-by-step guide to preparing a bar bending schedule from the drawing data, see our article on How to Prepare a Bar Bending Schedule: A Practical Guide for Quantity Surveyors.

The Checklist Before Starting Any Reinforcement Takeoff

Before opening the first reinforcement drawing and recording the first bar mark, a brief review of the drawing set prevents the most common sources of missed or incorrect quantities. The ten minutes this takes at the start of a takeoff saves significantly more time later — either in the correction of errors or in the explanation of discrepancies during a procurement review.

•       Confirm the drawing revision status: Every drawing in the set should be at its current revision — starting a takeoff from a superseded drawing produces quantities that are wrong from the first bar mark

•       Read the general notes sheet before measuring anything: Cover specifications, lap lengths, and standard bend allowances apply to every calculation — establish these values before deriving any dimensions

•       List all drawing sheets in the set before starting: Confirm that the set is complete — a missing drawing sheet means missing quantities that may not be identified until the steel is short on site

•       Identify all section marks on each plan view: Note which section drawings each mark references and confirm those sheets are in the set — a section mark without a corresponding section drawing is a gap in the information

•       Check for any general arrangement notes that affect reinforcement: Some structural engineers annotate the GA drawings with reinforcement notes that do not appear on the reinforcement drawings — particularly for secondary elements and non-standard conditions
